Showcase » John Deere » LA135 Special Edition Lawn Tractor
Model Quick Search

$1,999.00

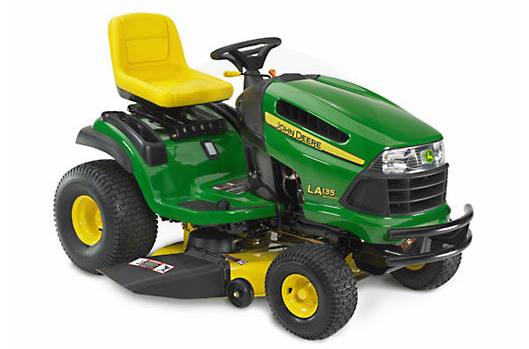

2009 John Deere LA135 Special Edition Lawn Tractor
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Engine is powerful and smooth-running V-twin design
  • Frame made of full-length welded steel for reliability
  • CargO Mount™ system
  • Cast-iron front axle will not bend
  • Hydro/automatic drive gives an infinite choice of ground speeds
  • Hood will not dent or rust and includes quality headlights for good visibility
  • Operator station designed for comfortable operation
  • Translucent fuel tank with sight gauge for ease of checking fuel level
  • RIO (Reverse Implement Option)
  • The Edge™ Cutting System gives superior performance
  • JD Loy hood resists fading, won't rust
  • Durable primer and powder paint finish
  • Full-length welded steel frame
  • U.S. Warranty: 2 year
Engine
  • Power: 22 hp (16.4 kW)
  • Displacement: 40 cu in. (656 cc)
  • Manufacturer: Briggs & Stratton
  • Cylinders: V-twin
  • Type: Overhead valve
  • Oil Drain: No tools
  • Charging System: 9 amp regulated
  • Choke/Speed Control: One lever
  • Fuel Tank Location: Rear
  • Fuel Tank Capacity: 4 U.S. gallon (2.25 U.S. gallon for California model)
  • Fuel Sight Gauge: Yes, front
Transmission
  • Control: Two-pedal foot control
  • Cruise Control: Yes
  • Forward Speed: 0-5.5 mph
  • Reverse Speed: 0-3.2 mph
Chassis
  • Frame: Full-length welded steel
  • Primer/Paint: E-coat/powder
  • Front Tires: 15x6-6
  • Rear Tires: 20x10-8
  • Front Axle: Cast iron
  • Hood Material: JD Loy
  • Floor Mats: Yes
  • CargO Mount System: Yes
  • Storage Pocket: Yes
  • 12 Volt Outlet: No
  • Hourmeter: Yes
  • Service Interval Decal: Yes
  • Tool Tray: Yes
  • Cupholder: Yes
Steering
  • Turning Radius: 18 in.
  • Uncut Circle Radius: 25 in. (42-in. mower)
Seat
  • Seat Back Height: 15 in.
  • Fore-aft Adjustment: 5 1/2 in. while seated
Lift System
  • Mower Cut Height: 1-4 in., 13 positions
  • Cut Height Increments: 0.25 in.
Mower
  • Mower Cutting Width: 42 in.
  • Mower Deck Material: .105 in. (12 ga)
  • Mower Wash Port: Yes
  • Easy-Level Deck: Yes
  • Mower Drive System: Manual PTO
Mower Attachability
  • Front Draft Arms: Spring pin
  • Rear Draft Arms: Spring pins
  • Meets ANSI Standard: Yes
  • Backup Protection: Reverse Implement Option (RIO)
  • Safety Video: Yes
Dimensions
  • Wheelbase: 48.9 in. (124.2 cm)
  • Overall Length: 74.1 in. (188.2 cm)
  • Overall Width (includ. discharge chute): 52 in. (132 cm)
  • Height: 45.7 in. (116 cm)
Optional Attachments
  • Mower: 42-in. Edge (standard)
  • Rear Bagger: 6.5 bu 2-bag
  • Mulching System: High-performance plug
  • Snow Blade: 46 in.
  • Snow Blower: 44-in. two-stage
  • Front Bumper: Two-bar styled front bumper is standard equipment
  • 12-Volt Oscillating Fan: No
  • Mounted Electric Spreader: 100 lb, 2 cu ft
  • Sun Canopy: Yes
  • Bucket Holder: Yes
  • Tow-Behind Tools: 14
NOTES:

Engine hp is provided by engine mfr. for comparison purposes. Actual operating hp will be less.


Specifications

Engine
Engine Manufacturer Briggs & Stratton
Horse Power 22 hp (16.4 kW)
Engine Type V-twin
Displacement 40 cu in. (656 cc)
General
Transmission Control: Two-pedal foot control; Forward Speed: 0-5.5 mph; Reverse Speed: 0-3.2 mph
Wheel Size Front Tires: 15x6-6; Rear Tires: 20x10-8
Fuel Capacity 4 U.S. gal. (2.25 gal. for California model)
Deck
Deck Size 42 in.
Discharge Type Side; Optional: Mulcher, Bagger

Compare Models

 Print








Year 2009
Manufacturer John Deere
Model LA135 Special Edition Lawn Tractor
Style Riding
MSRP* $1,999.00
Deck
Deck Size 42 in.
Discharge Type Side; Optional: Mulcher, Bagger
Engine
Engine Manufacturer Briggs & Stratton
Horse Power 22 hp (16.4 kW)
Engine Type V-twin
Displacement 40 cu in. (656 cc)
General
Transmission Control: Two-pedal foot control; Forward Speed: 0-5.5 mph; Reverse Speed: 0-3.2 mph
Wheel Size Front Tires: 15x6-6; Rear Tires: 20x10-8
Fuel Capacity 4 U.S. gal. (2.25 gal. for California model)
