2009 Wellcraft 252
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

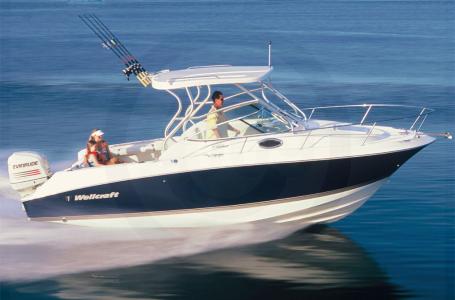

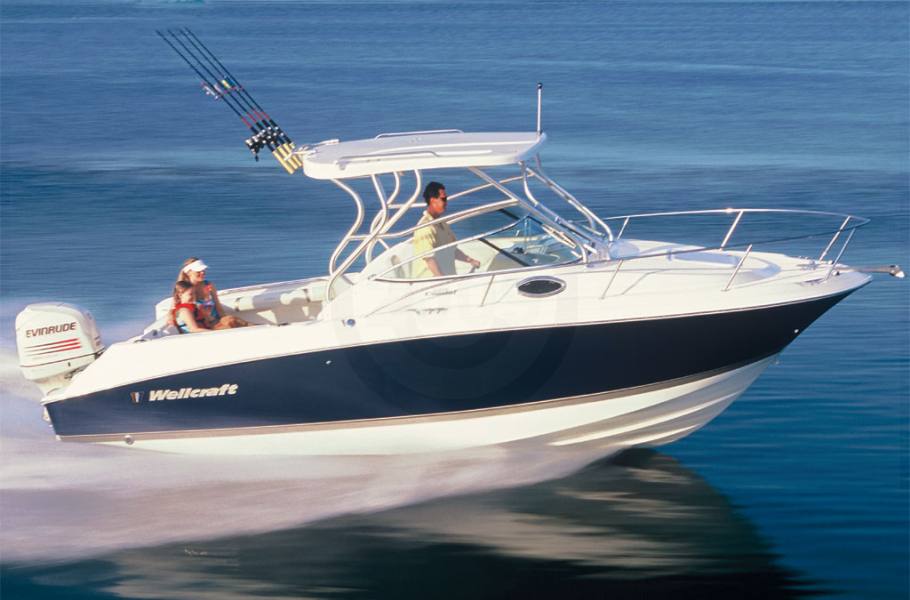

A luxurious balance between premium fishing and family features.


The 252 Coastal™ is a portable playground designed to cater to the fishing family's every need. Fishing features include a large fish box, baitwell, and plenty of space for rod and tackle storage. When it comes to catching fun, enjoy the convenience of a walk-through transom that leads to a stern swim ladder. Up front, a plush V-berth, full galley, dinette table and marine head provide a level of comfort normally reserved for larger boats. In short, when you choose the 252 Coastal, you're investing in options you'll never want to trade..

    Specifications
    • L.O.A.: 24'4"/7.42 m
    • Beam: 8'9"/2.66 m
    • Dry weight: 4,360 lbs./1,978 kg
    • Fuel Capacity: 140 gal./530 L
    • Water Capacity: 9 gal./34 L
    • Max Power @ Prop: 400 hp/298 kw
    • Shaft Length Single: 30"/.76 m
    • Shaft Length twin: 25"/.64 m
    • Draft Engine Up: 16"/.40 m
    • Draft Engine Down: 29.5"/.75 m
    • Dead Rise: 20 degrees
    • Bridge clearance w/o top: 6'/1.83 m
    • Bridge clearance w/ bimini top: 8'/2.43 m
    • Bridge clearance w/hardtop: 8'2"/2.49 m
    Cabin
    • Battery storage w/ tray(s)
    • Bi-fold locking entry door
    • Deck hatch - oversized with screen
    • Dinette table w/ filler cushion and dedicated storage
    • Galley w/ sink, storage bin, and pressurized fresh water
    • Head - self contained, covered
    • Molded soft touch headliner w/ integrated features including overhead rod storage
    • Port lights - (2) opening w/ screen
    • Rope locker access hatch
    • V-berth with cushions and storage
    Cockpit
    • Baitwell - 84-qt. with light and overboard drain
    • Beverage holders (5)
    • Cockpit bolsters - port/stbd - new
    • Cockpit courtesy lights
    • Cockpit overboard scuppers - stainless steel
    • Cooler - 44-qt. - integrated stbd side w/ overboard drain
    • Fish boxes - 128 qt portside w/ overboard drain
    • Fold away rear bench seat w/ cushion and aft bolster (new)
    • Hardtop molded w/ (4) rod holders, electronics flat, spreader light, and overhead incandescent lights (new)
    • Pedestal seats, adjustable w/ cushions port/stbd
    • Port/stbd jump seat cushions w/ backrest (new)
    • Skid resistant surfaces
    • Storage under helm seat 92 qt (dry)
    • Storage for fire extinguisher - stbd
    • Tackle storage box w/ removable trays
    • T-top w/ (4) rod holders, outrigger plates, sprader light, and PDF storage (new)
    Hull and Deck
    • Anchor roller with cleat
    • Anchor rope locker w/ hawse pipe
    • Bow and stern eyes - stainless steel
    • Cleats (6) - 8" stainless steel
    • Gunnel caps - w/ integrated stainless steel side grab rails
    • Integrated steps to forward deck - skid resistant
    • Rod holders (4) - stainless steel w/ cap
    • Rub rail - heavy duty with stainless steel insert
    • Stainless steel rails
    • Swim platform - integrated
    • Swim ladder - flip down
    • Thru hulls - stainless steel
    • Transom full height with door
    • Windscreen - curved tenoered Solex glass
    Mechanical
    • Accessory plug (1) - 12V at helm
    • Baitwell pump - 700 GPH
    • Battery parallel with remote switch at helm
    • Battery switch - dual w/ 2 trays for single engine, 3 trays for twin engines
    • Bilge pump w/ auto float switch - 500 GPH aft
    • Breakers - weather resistant
    • Compass
    • Full instrumentation - digital (new)
    • Horn - flush mount
    • Hoses - steel reinforced
    • Ignition - safety interlock system with lanyard
    • Navigation lights
    • Powered buss bar and space at helm for electronics
    • Propeller - stainless steel ( drop shipped and factory rigged engine only)
    • Raw water wash down
    • Remote oil fill (2 - stroke)
    • Steering - tilt hydraulic
    • Steering wheel - stainless steel w/ power knob
    • Submersible rated electrical connections
    • Switches - sealed
    • Trim Tabs
    • Windshield wipers port/stbd (new)
    Model Options
    • Canada certification
    • CE certification (for export only)
    • Cockpit/cabin carpet - snap in
    • Electronics Box (Available with T - Top only)
    • Engine cowling cover - Sunbrella w/ logo for Yamaha F200, F225 and F250 only (available through parts department only)
    • Forward Console Cooler Seat (94 qt) with Seat Back and Bottom Cushions
    • Fresh Water System - Pressurized Fresh Water System with Transom Shower (8 gal capacity)
    • Head Sealand Traveler - Porcelain w/9 gal Holding Tank and Dockside Pumpout, Pressurized Fresh Water System with Transom Shower
    • Heavy Duty Dive Ladder
    • Canvas Package for Hard Top - Side and drop curtains w/ windshield connectors (new)
    • Cockpit Bolsters Package - Includes Midship Bolsters - port/stbd, Forward bow bolsters port/stbd
    • Dive Package - dive ladder - heavy duty - removable, Transom shower fresh water
    • Enclosed Hardtop Package (new) - Fiberglass hardtop w/ (4) rod holders, Defroster, Full windshield w/ opening vents (replaces st
    • Outriggers - Taco Grand Slam - 15' poles (new)
    • Overboard discharge for Vacuflush head only
    • Overnight Package - Air conditioner - 5,000 btu reverse cycle with heat, battery charger, power outlet - 110V in cabin, Shore po
    • Pre-rig for Evinrude, Mercury and Yamaha (Recommended hp: 225 to 300 hp, check for engine availability)
    • Ray Marine C80 Electronics Package 8.4" Color Display - (Unit is radar ready - additional components required) Includes chartpl
    • Sirius Satellite Radio System - Clarion AM/FM CD Player, Sirius Satellite Receiver and Antenna, 4 speakers, Digital remote cont
    • Steering wheel aluminum with power knob
    • Vacuflush head w/ holding tank (10 gal) and dockside pumpout
    • Trailer - Aluminum w/ brakes
    • Trailer - Galvanized w/ brakes
    • Windlass w/ 150' rope/chain combo, electric up/down switches, lanyard and anchor
    Engine Options
    • SGL MERC 225 VERADO 4-STROKE
    • SGL MERC 250 VERADO 4-STROKE
    • SGL MERC 275 VERADO 4-STROKE
    • SGL EVINRUDE 250 E-TEC
    • TW EVINRUDE 150 E-TEC
    • TW EVINRUDE 200 E-TEC
    • TW EVINRUDE 200 E-TEC HO
    • SGL YAMAHA F 250 4-STROKE
    • TW YAMAHA F 150 4-STROKE
    • TW YAMAHA F 200 4-STROKE
    Hull Color Options
    • Fighting Lady Yellow
    • Hunter Green
    • Midnite Blue

    Specifications

    Engine
    Max HP 400 hp (298 kw)
    General
    Length Overall 24 ft. 4 in. (7.42 m)
    Beam 8 ft. 9 in. (2.66 m)
    Draft Engine Up: 16 in. (0.4 m); Engine Down: 29.5 in. (0.75 m)
    Dry Weight 4360 lbs. (1978 kg)
    Fuel Capacity 140 gal. (530 l)

    Compare Models

    		 Print








    Year 2009
    Manufacturer Wellcraft
    Model 252
    Style Fishing Boats
    Engine
    Engine Type
    Engine Horsepower
    Displacement
    Cylinders
    Max HP 400 hp (298 kw)
    General
    Length Overall 24 ft. 4 in. (7.42 m)
    Beam 8 ft. 9 in. (2.66 m)
    Draft Engine Up: 16 in. (0.4 m); Engine Down: 29.5 in. (0.75 m)
    Dry Weight 4360 lbs. (1978 kg)
    Max Person Capacity
    Fuel Capacity 140 gal. (530 l)
    Impeller / Prop
    Max Carry Load
