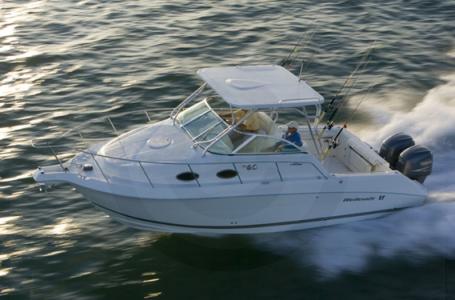

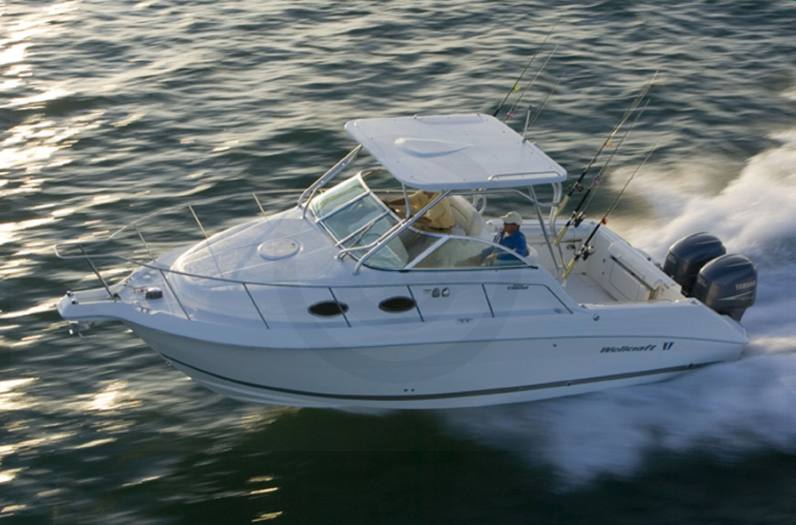

2009 Wellcraft 270
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Refined style for serious fishing and comfortable cruising.


With refined quality and superior design, you'll find the new 270 Coastal to be a perfect blend of well-appointed amenities and quality fishing features. The cruiser style cabin, with a galley and dinette, provide comfort on the water. With a full bait station, large insulated fishboxes, and abundant tackle storage, you're ready for action on the water. The cockpit includes a transom door leading to the swim platform. Whether you're fishing for a trophy or cruising with the family, the 270 Coastal has all the features to suit your style.

    Specifications
    • L.O.A. w/pulpit: 28'1" (8.56 m)
    • Hull Length: 25'10" (7.87 m)
    • Beam: 9'9" (2.97 m)
    • Dry weight: 7,225 lbs (3,284 kg)
    • Fuel Capacity: 188 gal. (712 l)
    • Water Capacity: 27 gal. (102 l)
    • Max Power @ Prop: 500 hp (373 kw)
    • Shaft Length: 25" (.64 m)
    • Draft Engine Up: 19" (.48 m)
    • Draft Engine Down: 34" (.86 m)
    • Dead Rise: 21 degrees
    • Bridge clearance w/o top: 7'1" (2.16 m)
    • Bridge clearance w/hardtop: 9'1" (2.77 m)
    • Sleeping Capacity: 4
    Cabin
    • AC/DC panel
    • Cabin door - sliding - lockable
    • Carbon monoxide detector
    • Carpet- snap in
    • Deck hatch - oversized with screen
    • Designer fabrics
    • Dinette table converts to full v-berth
    • Forward v-berth with cushions
    • Hanging locker
    • Lighting - 12 volt
    • Liner - full fiberglass
    • Mid cabin berth
    • Wood grain cabinets
    • Sirius Satellite Radio System - Clarion AM/FM CD player; Sirius satellite receiver and antenna; 4 speakers; digital remote at he
    Cockpit
    • Aft seat - fold out
    • Beverage holders
    • Cockpit boisters - port/stbd/aft
    • Cockpit overboard scuppers
    • Courtesy lights
    • Entry light switch at transom
    • Fish boxes (2) - w/lift assist, overboard pumpout
    • Floor storage
    • Helm seating module
    • Port seating module
    • Raw water washdown
    Galley
    • Countertop - Granulon w/ molded-in sink
    • Duplex outlet - GFI protected
    • Microwave oven
    • Refrigerator - dual voltage
    • Stove - single burner alcohol/electric
    Head
    • Duplex - GFI protected
    • Hand- held shower, molded figerglass sink and vanity with Granulon countertop and storage
    • Sealand VacuFlush head w/ holding tank
    Hull and Deck
    • Bow pulpit w/ anchor roller/chute and deck pipe
    • Bow and stern eyes - stainless steel
    • Cleats - stainles steel
    • Deck hatch - opening with screen
    • Hardtop - FRP, spreader lights, rod holders
    • Heavy duty dive ladder - removable
    • Heavy duty rub rail w/ stainless steel insert
    • Port lights - (4) w/ stainless steel trim rings - opening w/ screens
    • Rod holders - gunwale mount (4) stainless
    • Rod racks - under gunwale - port.stbd
    • Rope locker
    • Stainless steel rails
    • Swin platform - Integrated
    • Tramsom full height with door
    • Windshield - curved tempered Solex glass walk-thru door
    Mechanical
    • Accessory plug - 12 volt
    • Battery switch - dual with trays
    • Bilge pumps w/ auto float switches; 500 GPH fwd; 1500 GPH aft
    • Compass
    • Horm
    • Ignition - safety interlock system w/ lanyard
    • Instrumentation - digital
    • Navigation lights
    • Oil tank storage w/ remote fill (2-stroke only)
    • Power at helm for electronics
    • Pressurized fresh water system w/ transom shower
    • Propellers - stainless steel (Drop shipped and factory rigged engines only.)
    • Remote seacock actuators
    • Shore power - 30 amp with (2) 50' cords
    • Steering - tilt hydraulic
    • Steering wheel - stainless w/ power knob
    • Trim tabs
    • Windshield wipers - port/stbd
    Model Options
    • Air conditioner, 5000 BTU reverse cycle with heat
    • Canada certification
    • Carpet - snap in cockpit
    • CE certification (for export only)
    • 220 Volt (for export only where required)
    • Cradle
    • Dive tank storage racks
    • Dockside water connection including hot water for galley, head and transom shower
    • Engine cowling cover - Sunbrella w/ logo for Yamaha F225 and F250 only (available through parts department only)
    • Generator - 5 kw gas w/sound shield, bilge blower, and galvanic isolator w/ status monitoring
    • Outriggers - Taco Grand Slam - 15' poles
    • Overboard discharge for VacuFlush head
    • Power assisted steering (Yamaha and Bombardier engines only)
    • Pre-rig for Merc, Yamaha, and Evinrude (Recommended HP: Tw 200 hp to Tw 250 hp, check for engine availability)
    • Remote sportlight
    • Steering wheel - aluminum with power knob
    • Transom rod holders - (4) stainless steel flush mount
    • Windlass w/ 300' rope/chain combo, Electric Up/ Down Switches, Lanyard and Anchor
    • Windshield wiper washer system
    • Canvas Package for Hardtop - Side and drop curtains w/ windshield connectors
    • Cockpit Seating Package - Stbd baitwell and part storage box cushions (removable)
    • Raymarine C80, E80 or E120 Electronic Package
    • Raymarine Auto Pilot - ST6001 S1G (Yamaha and Evinrude engines only)
    • Raymarine Radar - 4 KW Radome
    • Raymarine Radar - 4 KW Open Array
    Engine Options
    • TW EVINRUDE 200 E-TEC HO
    • TW EVINRUDE 225 E-TEC
    • TW EVINRUDE 250 E-TEC
    • TW YAMAHA F200 4-STROKE
    • TW YAMAHA F225 4-STROKE
    • TW YAMAHA F250 4-STROKE
    • TW MERCURY 200 VERADO 4-STROKE
    • TW MERCURY 225 VERADO 4-STROKE
    • TW MERCURY 250 VERADO 4-STROKE
    Hull Color Options
    • Fighting Lady Yellow
    • Hunter Green
    • Midnite Blue
    Cabin Fabric Options
    • Natural Bisque
    • Seashore
    • Tropical Breeze

    Specifications

    Engine
    Max HP 500 hp (373 kw)
    General
    Length Overall 28 ft. 1 in. (8.56 m)
    Beam 9 ft. 9 in. (2.97 m)
    Draft Engine Up: 19 in. (0.48 m); Engine Down: 34 in. (0.86 m)
    Dry Weight 7225 lbs. (3284 kg)
    Fuel Capacity 188 gal. (712 l)

    Compare Models

    		 Print








    Year 2009
    Manufacturer Wellcraft
    Model 270
    Style Fishing Boats
    Engine
    Engine Type
    Engine Horsepower
    Displacement
    Cylinders
    Max HP 500 hp (373 kw)
    General
    Length Overall 28 ft. 1 in. (8.56 m)
    Beam 9 ft. 9 in. (2.97 m)
    Draft Engine Up: 19 in. (0.48 m); Engine Down: 34 in. (0.86 m)
    Dry Weight 7225 lbs. (3284 kg)
    Max Person Capacity
    Fuel Capacity 188 gal. (712 l)
    Impeller / Prop
    Max Carry Load
