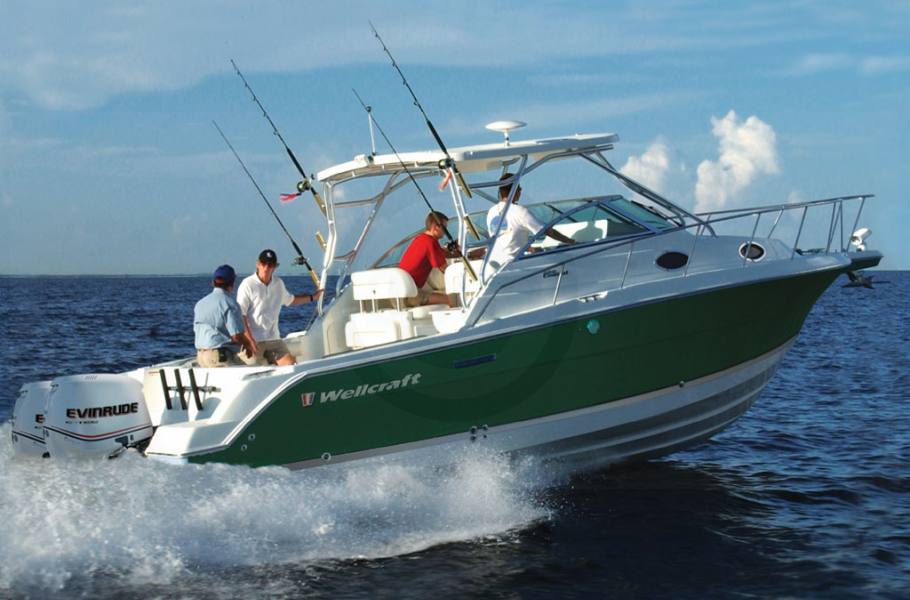

2009 Wellcraft 290
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Well-equipped for sportfishing and well-appointed for downtime in between.


You're looking for a capable offshore fishing boat, but also like the thought of enjoying a well-appointed cruiser. With the 290 Coastal™, you get to enjoy the best of both. Start with serious fishing features. You'll notice large fish boxes with lift assist and overboard pumpout, a 42-gallon Kodiak Pro Flow lighted baitwell and plenty of equipment storage. Now check out the amenities: a spacious sleep-over cabin, fully-equipped galley and dinette area and it's not hard to understand how a day's fishing trip can merge into a memorable weekend getaway.

    Specifications
    • L.O.A. w/pulpit: 30'2"/9.19 m
    • Hull Length: 27'10"/8.48 m
    • Beam: 10'5"/3.2 m
    • Dry weight: 8,735 lbs./3,962 kg
    • Fuel Capacity: 225 gal./871.2 L
    • Water Capacity: 42 gal./159 L
    • Holding Tank Capacity: 11 gal./42 L
    • Max Power @ Prop: 600 HP/447.4 kw
    • Shaft Length: 25"/.64 m
    • Draft engine up: 22"/.56 m
    • Draft engine down: 33"/.84 m
    • Dead Rise: 18 degrees
    • Bridge clearance w/o hardtop: 7'3"/2.2 m
    • Bridge clearance w/ bimini top: 8'3"/2.51 m
    • Bridge clearance w/ hardtop: 9'0"/2.74 m
    • Headroom: 6'2"/1 .88 m
    • Sleeping Capacity: 6
    Cabin
    • AC/DC panel
    • Cabin door - lockable
    • Carpet - snap in
    • Decor pillows
    • Dinette table
    • Forward V-berth
    • Hanging locker
    • Lighting - direct/indirect
    • Liner - full fiberglass
    • Mid cabin
    • Settee - port/stbd converts to twin pilot berth
    • Stretched vinyl headliner
    • Woodgrain cabinets
    Cockpit
    • Aft seat - three person fold-out
    • Beverage holders (6)
    • Cockpit bolsters
    • Cockpit overboard scuppers
    • Courtesy lights
    • Entry light switch at transom
    • Fiberglass molded steps on helm (3) for easy access to foredeck
    • Fish boxes (2) - with lift assist and overboard pumpout
    • Helm seating module: flip up seat/bolster, large dry storage, (4) bev. holders, side coaming pad, covered sink w/pressurized fre
    • Port seating module: Wrap around lounge seating w/ coaming pad, handholds stainless steel, 2 beverage holders & large dry storag
    • Raw water washdown
    Galley
    • Countertop - Granulon with storage below
    • Duplex outlet - GFI protected
    • Microwave oven
    • Overhead storage
    • Refrigerator - dual voltage, 110V w/15 amp converter - GFI protected
    • Sink with pressurized fresh water system
    • Stove - single burner - alcohol/electric
    Head
    • Duplex outlet - GFI protected
    • Full fiberglass head compartment w/ ventilation
    • Hand held shower
    • Molded fiberglass sink and vanity with Granulon countertop and dry storage
    • SeaLand VacuFlush head with holding tank
    Hull and Deck
    • Anchor locker
    • Bow and stern eyes stainless steel (new)
    • Bow pulpit with roller and anchor chute
    • Cleats - stainless steel
    • Deck hatch with screen
    • Hardtop FRP with finished liner, spreader light, port windshield wiper, rod holders, full canvas enclosure
    • Heavy duty dive ladder - removable
    • Heavy duty rub rail with stainless steel insert
    • Port lights (4) - opening with screens, stainless steel trim rings
    • Rod holders (4) - stainless steel, flush mount no cap
    • Rod racks - under gunwale - port/stbd
    • Stainless steel rails
    • Stainless steel thru hulls
    • Swim platform - integrated
    • Transom - full height with transom door
    • Windshield - tempered glass - with walk-thru
    Mechanical
    • Accessory plug - 12V
    • Battery switch - dual w/ trays
    • Bilge pumps with auto float switches - forward 500 GPH aft 1,500 GPH
    • Compass
    • Detector - carbon monoxide
    • Dockside water connection
    • Fuel filters/water separators
    • Horn
    • Hoses - steel reinforced
    • Ignition - safety interlock system with lanyard
    • Instrumentation - digital (new)
    • Navigation lights
    • Oil tank storage with remote oil fill (2-stroke only)
    • Pressurized fresh water system with transom shower - hot/cold
    • Propeller - stainless steel ( drop shipped and factory rigged engine only)
    • Remote seacock actuators (new)
    • Shore power - 30 amp with (2) 50' shore power cords
    • Steering - tilt hydraulic
    • Steering wheel - stainless steel w/ power knob
    • Trim Tabs
    • Water heater - 6 gal.
    • Windshield wiper (1)
    Model Options
    • A/C 7,000 BTU w/ heat
    • Auxiliary fuel tank (70 gal) (Generator cannot be ordered w/ this opt.)
    • Canada certification
    • CE certification (for export only)
    • Cockpit Carpet (snap-in)
    • Cockpit Cover for Hard Ttop
    • Cockpit seating package
    • Cradle
    • Dive Tank Storage Racks
    • Engine cowling cover - Sunbrella w/ logo for Yamaha F225 and F250 only (available through parts department only)
    • Generator 5.0 kw gas w/ Sound Shield, Insulated Aft Bulkhead and Galvanic Isolator with Status Monitoring
    • LCD TV / DVD with TV Telephone Inlet and Antenna (not available w/ CE or 220 volt)
    • Outriggers - Taco Grand Slam - 15' poles (new)
    • Overboard Discharge for Head
    • Power assisted steering (Yamaha and Bombardier engines only)
    • Preferred Option Package - TV/Telephone inlet w/ antenna, remote spotlight (Note: Items in Packages cannot be ordered individua
    • Pre-rig for Merc, Yamaha, and Evinrude (Recommended HP: Tw 225 hp to Tw 250 hp, check for engine availability)
    • Ray Marine C80 Electronics Package (2) 8.4" Color Display - (Units are radar ready - additional components required) Includes c
    • Ray Marine Auto Pilot - ST6001 S1G - (available w/ Yamaha & Bombardier engines only)
    • Ray Marine Radar - 4KW Radome
    • Ray Marine Radar - 4KW Open Array
    • Rod Holders Gold tone (4) Aft Transom Mounted
    • Stereo Upgrade Package - Cockpit subwoofer, power amp., 6 disc CD changer, 2 additional speakers, and cabin crossover amp. (Not
    • Steering Wheel - Aluminum with Power Knob
    • 220 Volt option
    • Windlass w/ 300' Rope/Chain combo, Electric Up/ Down Switches, Lanyard and Anchor (new)
    • Windshield Wiper/ Washer System
    Engine Options
    • TW MERC 225 VERADO 4-STROKE
    • TW MERC 250 VERADO 4-STROKE
    • TW MERC 275 VERADO 4-STROKE
    • TW EVINRUDE 225 E-TEC
    • TW EVINRUDE 250 E-TEC
    • TW YAMAHA F 225 4-STROKE
    • TW YAMAHA F 250 4-STROKE
    Hull Color Options
    • Fighting Lady Yellow
    • Hunter Green
    • Midnite Blue

    Specifications

    Engine
    Max HP 600 hp (447.4 kw)
    General
    Length Overall 30 ft. 2 in. (9.19 m)
    Beam 10 ft. 5 in. (3.2 m)
    Draft Engine Up: 22 in. (0.56 m); Engine Down: 33 in. (0.84 m)
    Dry Weight 8375 lbs. (3962 kg)
    Fuel Capacity 225 gal. (871.2 l)

    Compare Models

    		 Print








    Year 2009
    Manufacturer Wellcraft
    Model 290
    Style Fishing Boats
    Engine
    Engine Type
    Engine Horsepower
    Displacement
    Cylinders
    Max HP 600 hp (447.4 kw)
    General
    Length Overall 30 ft. 2 in. (9.19 m)
    Beam 10 ft. 5 in. (3.2 m)
    Draft Engine Up: 22 in. (0.56 m); Engine Down: 33 in. (0.84 m)
    Dry Weight 8375 lbs. (3962 kg)
    Max Person Capacity
    Fuel Capacity 225 gal. (871.2 l)
    Impeller / Prop
    Max Carry Load
