2009 Wellcraft 340
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Fish, cruise, entertain - your boat for it all!

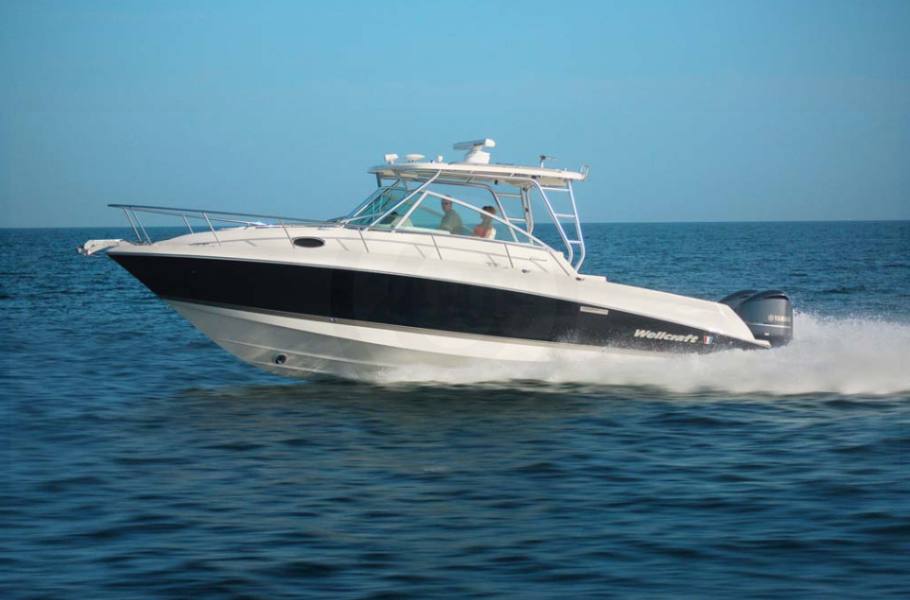

The 340 Coastal is a first-class fishing boat with luxury accommodations for the cruising family. The moment you step aboard, the first thing you appreciate is space and storage areas throughout. The large cockpit deck is low to the water and designed for fishing, but is also ideal for entertaining on board. The 340 boasts a richly appointed cabin, with sleeping for six, a full galley and full head with a stand-up shower. An E-Plex digital control system allows touch screen monitoring and control of all on board electrical operations. The Scarab-designed high performance hull matched with four-stroke outboard power provide a level of performance and economy unheard of in a boat of this size.

    Specifications
    • L.O.A.: 34'1"
    • Beam: 11'9"
    • Dry Weight (approx): 13,500 lbs
    • Fuel Capacity (gas): 382 gallons
    • Water Capacity: 56 gallons
    • Holding tank capacity: 10 gallons
    • Max Power @ prop: 750 hp
    • Shaft Length - twin: 25"
    • Shaft length - triple: 25"/Outer 30"
    • Dead rise: 20 degrees
    • Draft: engine up (approx): 20"
    • Draft: engine down (approx): 32 in.
    • Bridge clearance with hardtop (approx): 10' 10"
    • Headroom: 6'2"
    • Sleeping capacity: 6
    Hull and Deck
    • Anchor roller and additional bow anchor storage
    • Bow and stern eyes - stainless steel
    • Cleats - stainless steel (7) 10"
    • Deck hatches (3) - opening with screen (1) large; (2) small
    • Hardtop - FRP, spreader lights, overhead lights, rod holders (8) lockable rod storage (4) PFD storage, and remote spotlight
    • Heavy duty dive ladder - removable
    • Heavy Duty Rub Rail with Stainless Steel Insert
    • Port lights- (3) opening with screens
    • Rod holders - gunwale mount stainless steel
    • Rod racks - under gunwale - port/stbd
    • Rope locker
    • Stainless steel rails
    • Swim platform - integrated
    • Transom door
    • Windlass with 300' rope/chain combo, electric up/down switches, lanyard and anchor
    • Windshield - curved tempered Solex glass walk-thru door
    Cockpit
    • Air conditioning vent at helm (generated from cabin)
    • Aft access hatch to mechanical equipment
    • Aft seat - fold out
    • Baitwell - 50 gallon Kodiak system
    • Beverage holders - stainless steel
    • Cockpit bolsters - port/stbd/aft
    • Cockpit overboard scuppers
    • Courtesy lights
    • Entry lights
    • Entry light switch at transom
    • Fire extinguisher storage box
    • Fish boxes (2) - with lift assist and dedicated macerator pumps
    • Helm seat - double wide with flip up bolster - adjustable
    • Port side L-lounge seat with storage below and battery access
    • Pressurized fresh and raw water washdowns
    • Tackle storage - aft with cutting board
    • Wet bar - including storage, sink, Corian counter top and 110V outlet
    Cabin
    • AC/DC panel
    • Air conditioner - 12,000 BTU reverse cycle w/heat
    • Cabin door - lockable
    • Carbon monoxide detector
    • Chemical flooring
    • Designer fabrics
    • Dinette table - cherry wood w/compass rose inlay converts to full V-berth
    • Forward v-berth w/ cushions and backrests that convert to twin pilot berths
    • Hanging locker - cedar lined
    • Lighting - 12 volt
    • Liner - full fiberglass
    • Mid cabin berth - with table
    • Trash receptacle
    • Wood grain cabinets
    Galley
    • Coffee marker
    • Countertop - Corian with stainless steel sink
    • Duplex outlet - GFI protected
    • Refrigerator - stainless steel 4.6 cu ft. dual voltage
    • Stove - single burner alcohol/electric
    Head
    • Duplex outlet - GFI protected
    • Hand-held shower, molded fiberglass sink and vanity with Corian countertop and storage
    • Mirror - full length
    • SeaLand VacuFlush head with holding tank
    Mechanical
    • Accessory plugs - 12V - (2) helm/(1) cabin
    • Battery switches
    • Bilge pumps with auto float switches 800 GPH fwd; (2) 1500 GPH aft
    • Compass
    • Dockside water connection
    • Generator - 7.3kw gas with sound shield
    • Horn - Dual Trumpet
    • Ignition - safety interlock system w/ lanyard
    • Instrumentation - digital
    • Navigation lights
    • Oil tank storage with remote fill (2 stroke only)
    • Power at helm for electronics
    • Pressurized fresh water system with hot/cold transom shower
    • Propellers - stainless steel
    • Shore power - dual 30 amp with 50' cords
    • Steering - Hydraulic with poer assist and tilt wheel
    • Steering wheel - aluminum with power knob
    • Trim tabs w/ indicators
    • Water heater - tankless with continuous supply
    • Windshield wipers w/washer system
    Premium Sirius Satellite Radio System
    • Clarion AM/FM CD player
    • Sirius satellite receiver and antenna - 6 month subscription included
    • JL Marine audio speakers - (4) cockpit/(2) cabin
    • JL Marine 10" Cockpit Subwoofer
    • JL Mrine 6 Channel Amplifier
    • Digital remote control at helm w/ display
    • MP3 interface
    Model Options
    • Australian Certification
    • Bow thruster
    • Bow sunpad
    • Cabin carpet
    • Canada certification
    • CE certification
    • Cockpit carpet - bridge deck area
    • Cockpit table
    • 220 Volt (required for Austrailian and CE certification)
    • Cradle
    • Ice maker - cockpit (replaces wet bar storage unit)
    • Grill - stainless steel
    • LCD TV/DVD player with antenna and dockside TV/telephone cords
    • Outriggers - Taco Grand Slam - 15' poles
    • Overboard discharge for VacuFlush head
    • Pre-rig for Mercury Verado, Yamaha 4-Stroke and Evinrude
    • Refrigerator - stainless steel pull out (replaces helm seat storage unit)
    • Seats - cockpit port/stbd under gunwale fold out (replaces rod storage)
    • Transducer - high performance 1 KW in-hull (N/A w/ Raymarine Packages)
    • Canvas Package for Hardtop - Side and drop curtains w/ windshield connectors
    • Raymarine C120 Electronics Package (2) 12.1" Color Displays - (Units are radar ready-additional components required) Includes ch
    • Raymarine E120 Electronics Package (2) 12.1" Color Displays - (Units are radar ready - additional components required) Includes
    • Raymarine Auto Pilot - ST6001 S1G (available with Yamaha and Bombardier engines only)
    • Raymarine Radar - 4KW Radome
    • Raymarine Radar - 4KW Open Array
    Engine Options
    • TW YAMAHA F250 4-STROKE
    • TW YAMAHA F350 4-STROKE
    • TRIPLE YAMAHA F250 4-STROKE
    • TW MERCURY 250 VERADO 4-STROKE
    • TW MERCURY 275 VERADO 4-STROKE
    • TW MERCURY 300 VERADO 4-STROKE
    • TRIPLE MERCURY 225 VERADO 4-STROKE
    • TRIPLE MERCURY 250 VERADO 4-STROKE
    • TW EVINRUDE 250 E-TEC
    • TRIPLE EVINRUDE 225 E-TEC
    • TRIPLE EVINRUDE 250 E-TEC
    Hull Color Options
    • Midnite Blue
    • Onyx Black

    Specifications

    Engine
    Max HP 750 hp
    General
    Length Overall 34 ft. 1 in.
    Beam 11 ft. 9 in.
    Draft Engine Up: 20 in.; Engine Down: 32 in.
    Dry Weight 13,500 lbs.
    Fuel Capacity 382 gal

    Compare Models

    		 Print








    Year 2009
    Manufacturer Wellcraft
    Model 340
    Style Fishing Boats
    Engine
    Engine Type
    Engine Horsepower
    Displacement
    Cylinders
    Max HP 750 hp
    General
    Length Overall 34 ft. 1 in.
    Beam 11 ft. 9 in.
    Draft Engine Up: 20 in.; Engine Down: 32 in.
    Dry Weight 13,500 lbs.
    Max Person Capacity
    Fuel Capacity 382 gal
    Impeller / Prop
    Max Carry Load
