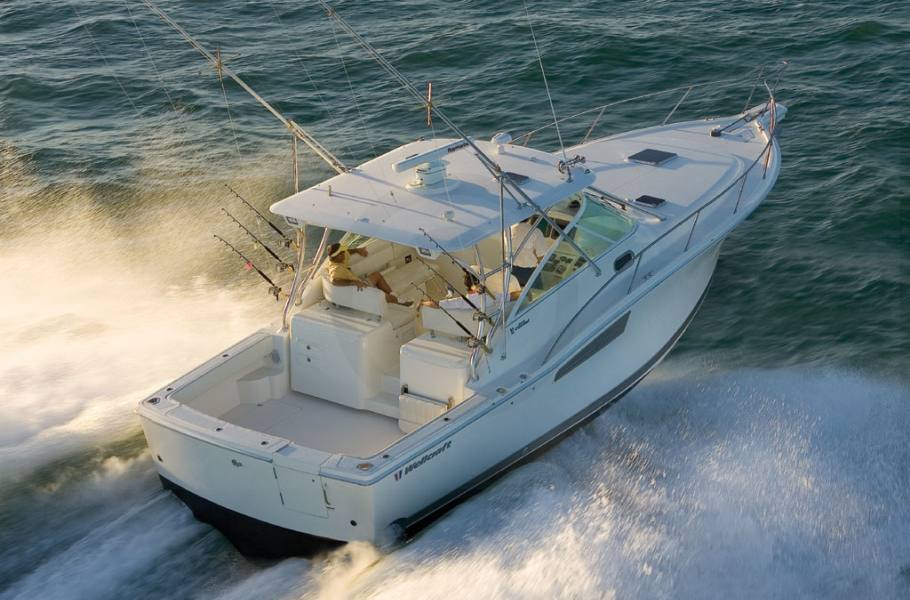

2009 Wellcraft 360
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The all-inclusive family package.


Luxury cruiser or blue-water performer? The impeccably considered 360 Coastal™ invites you to enjoy the best of both. From the plush cockpit seating, get a bird's-eye view of the quality that surrounds you. The cabin below reveals cruiser style amenities. Corian® countertops complement cherry wood finishes. Deep storage boxes make way for open seating and spacious sleeping room. Behind you, the bait prep center, fish boxes, freezer and tackle storage leave room for a fighting chair - and plenty of heart pumping action. In short, nothing about the 360 Coastal is unconsidered.

    Specifications
    • L.O.A. w/pulpit & platform: 40' 9"/12.30 m
    • L.O.A. w/pulpit: 39' 6"/12.04 m
    • Hull Length: 36' 6"/11.12 m
    • Beam: 13' 8"/4.16 m
    • Dry weight: 20,000 lb /9072 kg
    • Fuel Capacity: 400 gal/1514 L
    • Water Capacity: 107 gal./405 L
    • Holding Tank Capacity: 18 gal./68.14 L
    • Max Power @ Prop: 1080 HP/806.4 kw
    • Draft: 40"/1.02 m
    • Dead Rise: 18 degrees
    • Bridge clearance w/hardtop: 10'6"/3.2 m
    • Headroom: 6'4"/1.93 m
    • Sleeping Capacity: 5
    Cabin
    • 110V GFI protected electrical outlets port/stbd
    • AC panel - custom with accent tube lighting
    • Accessory plug - 12V
    • Acrylic sliding door - locking
    • Air conditioning 16,000 btu, double pan reverse cycle with heat
    • Cabin steps Cherry
    • DC panel - custom with navigation lights, bilge pump monitor, and accent tube lighting
    • Decor kit - fitted v-berth comforter and 3 throw pillows
    • Dinette area - stbd L-shape seat with Cherry hi-lo dinette table and filler cushion that converts to sleep 2, dinette backrest c
    • Forward island v-berth with 6" inner spring mattress - hinged to access storage below; two lower v-berth drawers
    • Hanging locker - port/stbd - cedar lined with light
    • Lighting 12V/110V - overhead - recessed (sealed)
    • Liner - full fiberglass
    • Privacy curtains
    • Rod storage cabinet above dinette w/ door & accent lighting
    • Rod storage in cabin sole includes storage boxes (3)
    • Stereo speakers - (2)
    Cockpit
    • Air conditioning vent - stbd helm (generated from cabin)
    • Bait prep center w/ sink & rigging board & tackle storage (port)
    • Baitwell - 37 gal. Kodiak Pro Flow
    • Beverage holders
    • Chart storage
    • Cockpit coaming bolsters - port/stbd/aft
    • Cockpit overboard scuppers
    • Cockpit seating - adjustable stbd helm seat w/ built in foot rest; portside "L" shape lounge, storage below port/stbd seats
    • Courtesy lights
    • Entry light switch at transom
    • Fire extinguisher storage box
    • Fish boxes (2) insulated with run/dry solids pump
    • Freezer - (72 qt) port side with overboard drain
    • Pressurized fresh and raw water washdown system
    • Pre-wire for four 12V electric reels/down riggers
    • Tackle storage cabinets
    Galley
    • 110V GFI protected electrical outlets
    • Cherry cabinetry with satin finish
    • Coffee maker (N/A w/ CE or 220 volt)
    • Countertop - Corian - with backsplash
    • Microwave oven
    • Recessed overhead lighting (sealed)
    • Refrigerator with freezer dual voltage, 110V/12V
    • Stainless steel sink under counter mount; pressurized freshwater; hot/cold faucet
    • Storage drawers include upgraded slides
    • Stove - electric, ceramic top - dual burner
    Head
    • 110 volt GFI protected electrical outlet
    • Automatic shower sump pump
    • Corian backsplash, hot/cold water faucet
    • Countertop - Corian - with molded in sink and Corian backsplash, hot/cold water faucet
    • Full length head door mirror
    • Portlight - opening with screen
    • Recessed over head lighting - 12V - sealed
    • Slider bar shower head system with separate mixer mounted on bulkhead - hot/cold water
    • Storage cabinets with mirrored doors
    • Vacuflush head system with 18 gal. holding tank, level monitor and dockside pumpout
    Hull and Deck
    • Anchor locker
    • Bow pulpit with integrated roller and deck pipe
    • Bow rail - stainless steel
    • Cleats - stainless steel (2 )12"; (4) 10"
    • Cockpit sole reinforcement for fighting chair
    • Custom engine intake port/stbd
    • Deck hatches (3) opening with screen
    • Engine room - molded fiberglass
    • Engine room sound dampening system and cabin insulation
    • Engine service hatch
    • Hardtop FRP includes spreader lights (2) and rod holders and 2 overhead stereo speakers
    • Heavy duty rub rail with stainless steel insert
    • Hullside exhaust - stainless steel
    • Portlights opening with screen (2)
    • Rod holders (6)
    • Stainless steel rails
    • Stern hawse pipes (2)
    • Thru hull fittings - stainless/bronze
    • Transom door with top gate
    • Windlass with up/down switches
    • Windshield - welded aluminum with electric center vent section
    Mechanical
    • Battery charger, 50 amp
    • Battery paralleling solenoid with switch at helm
    • Battery switches - heavy duty - remote actuated
    • Battery trays - 5 - with 5 batteries
    • Bilge pumps with auto float switches; (2) 1500 gph aft; (1) 1500 gph mid; (1) 500 gph fwd
    • Circuit breaker protection
    • Compass
    • Detector - carbon monoxide
    • Dockside water connection
    • Dripless shaft logs
    • Electric engine hatch actuators (2)
    • Electronic controls
    • Engine alarm system (Engine alarm functionality varies by engine)
    • Engine blowers - port/stbd
    • Engine room fire suppression system with automatic shut down controller for engines, generator and blower and manual override
    • Engine room ladder
    • Engine room lights
    • Fresh water cooled engines
    • Fresh water hose bibb in engine room
    • Fuel filters with water separators
    • Fuel tank - aluminum with port/stbd fills
    • Full instrumentation - digital
    • Galvanic bonded electrical systems with Dynaplate and zinc
    • Generator 8kw with fresh water cooling and 1 battery
    • Horn - dual trumpet
    • Hoses - steel reinforced
    • Navigation lights
    • Propeller shafts - stainless steel
    • Propellers - bronze
    • Sea water strainers
    • Seacocks - fitted below water line
    • Shore power (2) 30 amp with two 50' shore power cords
    • Sirius satellite radio system, Clarion AM/FM CD player,
    • Sirius satellite receiver, antenna and 4 speakers and remote control at helm
    • Steering - tilt hydraulic
    • Steering wheel - aluminum with power knob
    • Submersible rated electrical connections
    • Trim tabs - recessed - hydraulic
    • TV/Telephone inlet
    • Water heater - 6 gal.
    • Water resistant switch panel with breakers
    • Windshield wiper/washer system (2 wipers)
    Model Options
    • Aft Facing Cockpit Seat - Stbd
    • Air Conditioning - 7,000 BTU reverse cycle with heat on bridge deck
    • Bottom Paint - black antifoul
    • Bow thruster includes additional battery switch - remote actuated from helm, battery tray and battery, automatically charges fro
    • Cabin carpet - snap in
    • CE certification
    • Cockpit Carpet (snap-in)
    • Cockpit pedestal seats - port/stbd (replaces std seating)
    • Dinette Table Upgrade Cherry Wood with Compass Rose Inlay
    • Emergency Bilge Suction - 1 engine
    • Fold Away Rear Bench Seat
    • Full Commission - includes Bottom Paint, Water Ready, Launching Boat into Sarasota Bay
    • Hardtop canvas enclosure includes windshield connector, side and drop curtain
    • Icemaker on Bridge Deck
    • JL Audio Stereo Upgrade (replaces standard speakers) - 6 channel 450W full range amplifier, 1 cockpit, 1 cabin 10" 150W subwoofe
    • LCD TV/DVD with Antenna and Dockside TV/Telephone Cords (not available w/ CE or 220V)
    • Oil Changer System, Engines, Transmissions and Generator
    • Outriggers
    • Overboard Discharge for Vacu Flush Head
    • Ray Marine E120 Electronics Package (2) 12.1" Color Displays (units are radar ready - additional components required). Includes
    • Ray Marine Auto Pilot - ST8001 S1G
    • Ray Marine Radar - 4 KW Open Array
    • Remote Spotlight - Hardtop Mounted
    • SeaKey - featuring telematics technology (Note: SeaKey standard w/ Volvo D-6 engines, optional w/ Cummins engine.)
    • Swim Platform with Boarding Ladder
    • Trolling valves (available for Cummins)
    • Upgrade Teak cabin floor
    • VHF Radio - Ray 240 Modular System
    Engine Options
    • CUMMINS - CUMMINS 540 DIESEL
    • VOLVO - VOLVO D-6 (370 HP) DIESEL
    Hullside Color Options
    • Optional Color Hull Sides -Fighting Lady Yellow
    • Optional Color Hull Sides - Midnite Blue
    • Optional Color Hull Sides - Hunter Green

    Specifications

    Engine
    Max HP 1080 hp (806.4 kw)
    General
    Length Overall 40 ft. 9 in. (12.3 m)
    Beam 13 ft. 8 in. (4.16 m)
    Draft 40 in. (1.02 m)
    Dry Weight 20,000 lbs. (9072 kg)
    Fuel Capacity 400 gal. (1514 l)

    Compare Models

    		 Print








    Year 2009
    Manufacturer Wellcraft
    Model 360
    Style Fishing Boats
    Engine
    Engine Type
    Engine Horsepower
    Displacement
    Cylinders
    Max HP 1080 hp (806.4 kw)
    General
    Length Overall 40 ft. 9 in. (12.3 m)
    Beam 13 ft. 8 in. (4.16 m)
    Draft 40 in. (1.02 m)
    Dry Weight 20,000 lbs. (9072 kg)
    Max Person Capacity
    Fuel Capacity 400 gal. (1514 l)
    Impeller / Prop
    Max Carry Load
