Showcase » John Deere » 1130SE Dual Stage Snowthrower
Model Quick Search

$1,549.00

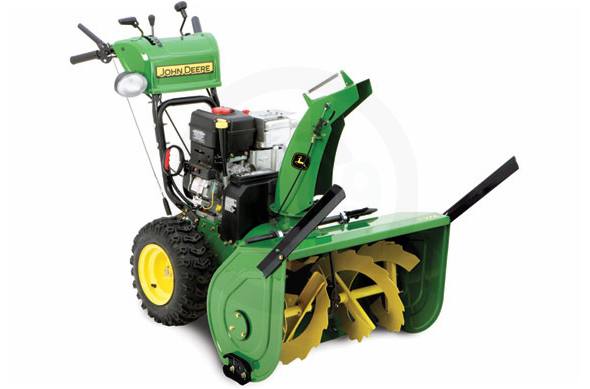

2009 John Deere 1130SE Dual Stage Snowthrower
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Powerful 4-cycle OHV Briggs and Stratton Snow Series MAX engine with 15.50 ft-lbs gross torque power
  • 30-inch clearing width
  • Free hand control for easy chute rotation
  • Push button 110V electric start standard
  • Recoil start with large mitten grip
  • Easy Steer® drive system giving continuous power to both wheels and auto speed adjustment
  • Friction disk drive with 6 forward/2 reverse speeds
  • Aluminized Super Lo-Tone muffler for reduced noise
  • Cast iron gear case
  • Steel auger with serrated flighting
  • Deluxe console and handlebar design
  • Large chute opening for increased snow capacity
  • Remote chute rotation with 200-degree turning radius in only 10 turns
  • Remote chute deflector
  • Heavy duty embossed auger housing
  • Heated handgrips with two settings
  • Offset halogen headlight for better visibility
  • Drift cutters standard
  • Heat-treated, reversible skid shoes
  • 4-quart fuel tank
  • Throttle control
  • Fresh Start® fuel cap standard
  • 16-inch by 6.5-inch X-Trac tires
  • 2-year consumer warranty, 90-day commercial warranty
  • Includes tool box and clear out brush
  • This product is CARB compliant
  • The John Deere Promise is not available on this product
Specifications
  • Duty Type: Dual Stage
  • Model Description: 1130SE
  • Clearing Width: 30 in. (76 cm)
  • Engine Model: Briggs & Stratton 1550 Snow Series MAX
  • Ft.-lbs Gross Torque: 15.50 ft.-lbs.
  • CC: 342 cc
  • Starting System: Electric/Recoil with Large Mitten Grip
  • Fuel Tank Volume: 4qt (3.8 l)
  • Fresh Start Fuel Cap: Standard
  • Auger Type: Steel - Serrated
  • Auger Gear Case Material: Cast Iron
  • Intake Height: 21 in. (53 cm)
  • Drive Type: Friction Disk
  • Speeds: 6 Forward / 2 Reverse
  • Drive System: Easy Steer®
  • Chute Rotation: 200 deg.
  • Chute Deflector: Remote
  • Handle: Deluxe Console
  • Free Hand Control: Standard
  • Tire Size: 16 in.x 6.5 in., (41x17 cm) X-Trac
  • Wheel Lock: Automatic
  • Skid Shoes: Heat Treated/Reversible
  • Drift Cutters: Standard
  • Headlight: Halogen
  • Heated Hand Grips: Standard
  • Clean Out Stick: Standard
  • Toolbox: Standard
  • Storage Cover: Optional
  • Tire Chains: Optional
  • Snow Cab: Optional
  • Engine Block Heater: Optional
  • Weight: 260 lbs.
  • Warranty: 2 Year Consumer, 90 Day Commercial

Specifications

Engine
Engine Type 4-cycle OHV Briggs and Stratton Snow Series MAX engine with 15.50 ft-lbs gross torque power
Engine Manufacturer Briggs and Stratton
Engine Displacement 342 cc
General
Width 30 in. (76 cm)
Starting Electric/Recoil with Large Mitten Grip
Drive Type Friction disk drive with 6 forward/2 reverse speeds
Wheel Size 16-inch by 6.5-inch X-Trac tires
Weight 260 lbs.
Fuel Capacity 4qt (3.8 l)

Compare Models

 Print








Year 2009
Manufacturer John Deere
Model 1130SE Dual Stage Snowthrower
Style Walk-Behind
MSRP* $1,549.00
Engine
Horse Power
Engine Type 4-cycle OHV Briggs and Stratton Snow Series MAX engine with 15.50 ft-lbs gross torque power
Engine Manufacturer Briggs and Stratton
Engine Displacement 342 cc
General
Width 30 in. (76 cm)
Starting Electric/Recoil with Large Mitten Grip
Max Discharge
Drive Type Friction disk drive with 6 forward/2 reverse speeds
Wheel Size 16-inch by 6.5-inch X-Trac tires
Weight 260 lbs.
Fuel Capacity 4qt (3.8 l)

Current Promotions

There are currently no promotions available for this product.
