$1,499.00

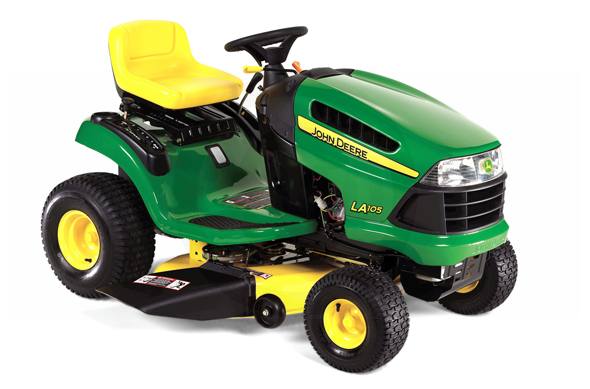

2010 John Deere LA105 Lawn Tractor
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • One-piece fender deck is bolted to the frame
  • Full-length robotically welded frame design has high-strength steel rails for added strength and long life
  • The solid one-piece frame is constructed of 12-gauge (0.11-in., 3.0 mm) steel.
  • No-tools oil drain valve provides easy access for oil changes.
  • Full-pressure lubrication and oil filter keep oil cleaner for long engine life and extends time between oil changes; full-pressure lubrication is also more effective when operating the tractor on an incline
  • Overhead valves for excellent power and fuel economy
  • Cast-iron sleeve for long engine life
  • Electronic ignition for fast starts
  • A 19.5-horsepower Briggs & Stratton Anti-Vibration System (AVS) single-cylinder engine has plenty of power and torque to handle tough mulching, mowing, and bagging conditions.
  • Two headlights provide good lighting for nighttime operation
  • Openings on the side of the hood let in plenty of cooling air while keeping the sound level low
  • UV-resistant JD Loy material resists fading
  • Color is molded in for long-lasting good looks
  • The standard cut-height memory indicator allows the operator to choose the same cut height each time the grass is cut
  • Increments of 1/4-in. allow the customer to fine-tune the cut height
  • Spring-assisted, low-effort lift lever simplifies setting and adjusting the mower cut height.
  • Optional blades for difficult mulching or bagging conditions are available.
  • StarLock blade design keeps the blade bolt at the correct torque for easy removal.
  • Hose connector included with mower deck
  • A wash port is provided to make cleaning the underside of the mower deck easy.
  • A cut-and-throw 6-1/2 bushel rear bagger is sold separately.
  • A patented blade-to-spindle design provides a unique mounting system for the mower blade that gives extra safety and convenience.
  • The mower deck has a rolled lip to provide greater strength and protection.
  • High-performance mulch plug (BM20813) is an optional attachment
  • Mulch cover is optional
  • Requires no tools to go from mulching to side discharge to rear bagging
  • The 42-in. two-spindle, three-in-one mower is constructed of 12-gauge (.105-in., 2.7 mm) steel.
  • Dual-stage E-coat and powder paint coatings provide extra protection from rust
  • The rolled outer edge of the deck provides extra strength and protection
  • Smooth underside of mower prevents grass buildup and evenly disperses grass clippings
  • Deep-deck mower design lifts grass for a clean, even cut
  • The EdgeTM Cutting System has been trademarked to emphasize the advantages of the John Deere mower deck designs. They give the mower superior convenience, performance, and reliability.
  • California 100 Series: The tractor has a CARB certified engine that produces less air pollution
  • California 100 Series: Instead of a fuel tank vent a carbon canister, located under the rear fender deck, collects and absorbs fuel vapors and routes them to the engine when it is running to be burned
  • California 100 Series: Tractor has a unique fuel cap that is tethered to the tank so that it will not be lost and the tractor run with an open fuel tank; the cap clicks when it is fully installed so the operator knows that the tank is sealed
  • California 100 Series: Tractor has a unique fuel tank that has been certified by CARB to not release fuel vapors into the atmosphere
  • California 100 Series: 2.25 gallon (8.5 L) fuel capacity
  • California 100 Series Tractors have a unique fuel system to meet the California Air Resource Board (CARB) requirements.
  • Fuel Capacity: 2.1 gallon (7.9 l)
  • Gives operator a simple way to view how much fuel is left in the tank
  • Particularly helpful in preventing spills when filling the fuel tank
  • The fuel tank provides visibility to the amount of fuel in the tank.
  • Beverage holder is found on the right side fender for added value and operator convenience.
  • Seat can be tilted forward for protection from the elements and to provide easy access to the fuel tank.
  • Operator seat can be easily adjusted forward or rearward while in the seat, with seat travel of 5-1/2-in. and 10 different positions.
  • Wide footrest areas with non-slip, anti-vibration rubber footpads are provided for operator comfort and safety.
  • Ignition switch is on the dash for starting ease.
  • Three-spoke steering wheel for greater operator comfort and control.
  • Tough, durable, and will not dent or rust
  • The hood is made of injection-molded JD Loy UV-resistant polymer.
  • In-line shift pattern with conveniently located shift lever makes changing speeds easy and precise.
  • Unique clutch/brake design allows shifting and braking with one pedal. Clutch engagement is modulated for extra smooth, predictable, and confident operation.
  • Five speeds are spaced to match a variety of jobs and conditions.
  • A Dana 4360 transaxle with enclosed differential and transmission gives reliable operation.
  • Large, 3/4-in. diameter wheel spindles provide excellent durability
  • Grease fittings allow regular lubrication to help maintain easy steering and minimize wear
  • Automotive-like steering system with sector and pinion steering gears with dual drag links provides a very strong, low-effort, and tight-turning system
  • The front axle is constructed of solid cast iron that will not bend.
  • The CargO MountTM system is a combination of front and rear mounting points that provide convenient and easy installation of the sun canopy, rear bagger, and other attachments.
RIO (Reverse Implement Option)
  • Mowing while backing up is strongly discouraged.
  • An operator who deems it necessary and chooses to keep the mower (or other implement) engaged while backing up should first bring the tractor to a stop and look behind the tractor to be sure there are no bystanders. Then actuate (push in) the RIO button. The RIO button must be held down in the reverse implement position as the shift lever is moved into reverse (reverse foot pedal is depressed on automatic drive models).
  • The operator may then release the button and the mower will continue to operate while they are backing up and also when they resume forward operation. The next time the operator chooses to keep the mower engaged while backing up, they must repeat this procedure. If the mower (PTO) is engaged and the operator shifts into reverse or depresses the reverse pedal prior to pressing the RIO button, ignition to the engine will be shut off. The engine will stop unless the operator either pushes on the RIO switch or shifts out of reverse.
  • If the engine does stop, the operator must return the mower engagement (PTO) switch or lever to the ''off'' position, depress the brake pedal, and then turn the ignition switch to restart the engine.
Warranty
  • 2 year
Engine
  • Power: 19.5 hp (14.5 kW)
  • Displacement: 30.5 cu. in. (500 cc)
  • Manufacturer: Briggs & Stratton
  • Cylinders: One
  • Type: Overhead valves
  • Oil Drain: No tools
  • Charging System: 9 amp regulated
  • Choke/Speed Control: One lever
  • Fuel Tank Location: Rear
  • Fuel Tank Capacity: 2.1 gal.
  • Fuel Sight Gauge: Yes, front
Transmission
  • Control: In-line
  • Forward Speed: 1.5-5 mph
  • Reverse Speed: 2.3 mph
Chassis
  • Frame: Full-length welded steel
  • Primer/Paint: E-coat/powder
  • Front Tires: 15x6-6
  • Rear Tires: 20x8-8
  • Front Axle: Cast iron
  • Hood Material: JD Loy
  • Floor Mats
  • CargO Mount System
  • Storage Pocket
  • Hourmeter
  • Service Interval Decal
  • Cupholder
Steering
  • Turning Radius: 18 in.
  • Uncut Circle Radius: 25 in. (42 in. mower)
Seat
  • Seat Back Height: 11 in.
  • Fore-aft Adjustment: 5 1/2 in. while seated
Lift system
  • Mower Cut Height: 1-4 in., 13 positions
  • Cut Height Increments: 0.25 in.
  • Memory Indicator
Mower
  • Mower Cutting Width: 42 in.
  • Mower Deck Material: .105 in. (12 ga.)
  • Mower Wash Port
  • Easy-Level Deck
  • Mower Drive System: Manual PTO
  • Mulch Cover: Optional
Mower Attachability
  • Front Draft Arms: Spring pin
  • Rear Draft Arms: Spring pins
  • Meets ANSI Standard
  • Backup Protection: RIO
  • Safety Video
Dimensions
  • Wheelbase: 48.9-in. (124.2 cm)
  • Overall Length: 69.9-in. (177.5 cm)
  • Overall Width (includ. discharge chute): 52-in. (132 cm)
  • Height: 41-in. (104 cm)
Optional Attachments
  • Mower: 42 in. Edge (standard)
  • Rear Bagger: 6.5 bu. 2-bag
  • Mulching System: High performance plug
  • Snow Blade: 46 in.
  • Snow Blower: 44 in. two-stage
  • Front Bumper: Two-bar styled front bumper
  • Sun Canopy
  • Bucket Holder
  • Tow-Behind Tools
  • Mounted Electric Spreader: 100 lb, 2 cu ft

Specifications

Engine
Engine Manufacturer Briggs & Stratton
Horse Power 19.5 hp (14.5 kW)
Engine Type Overhead valves
Displacement 30.5 cu. in. (500 cc)
General
Wheel Size Front Tires: 15x6-6; Rear Tires: 20x8-8
Fuel Capacity 2.1 gal.
Deck
Deck Size 42 in.
Discharge Type Side; Optional: Mulcher, Bagger

Compare Models

 Print








Year 2010
Manufacturer John Deere
Model LA105 Lawn Tractor
Style Riding
MSRP* $1,499.00
Deck
Deck Size 42 in.
Discharge Type Side; Optional: Mulcher, Bagger
Engine
Engine Manufacturer Briggs & Stratton
Horse Power 19.5 hp (14.5 kW)
Engine Type Overhead valves
Displacement 30.5 cu. in. (500 cc)
General
Transmission
Wheel Size Front Tires: 15x6-6; Rear Tires: 20x8-8
Fuel Capacity 2.1 gal.
